Inside a Bullet Factory

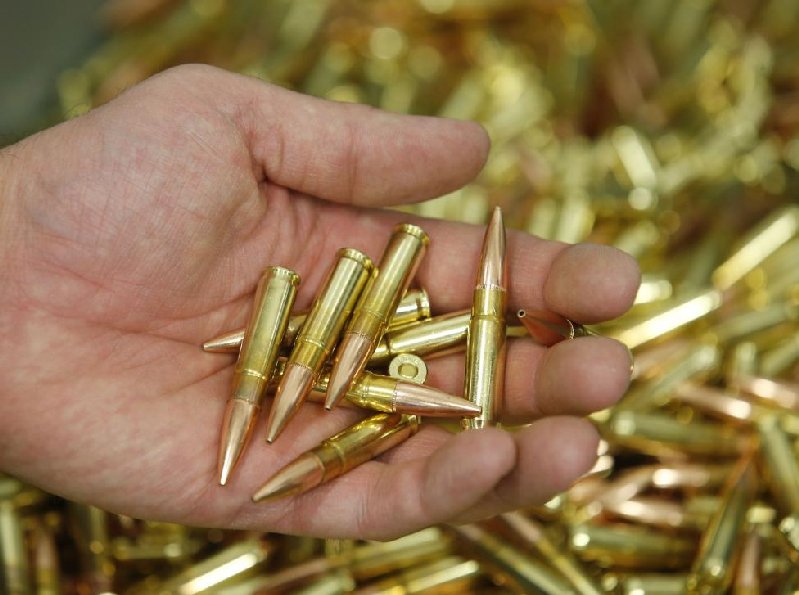

A bullet is a projectile propelled by a firearm, sling, slingshot, or air gun. Bullets do not normally contain explosives, but damage the intended target by impact and penetration. The word "bullet" is sometimes colloquially used to refer to ammunition in general, or to a cartridge, which is a combination of the bullet, case/shell, powder, and primer. This use of 'bullet', when 'cartridge' is intended, leads to confusion when the components of a cartridge are discussed or intended.
Bullets fired from slings, slingshots, and many airguns (including BB guns) travel well below the speed of sound (about 343 m/s or 1126 ft/s in dry air at 20 °C or 68 °F). Low-power handguns have muzzle velocities generally less than the speed of sound (subsonic), while bullets fired from high-power handguns (such as a .44 Magnum) and from rifles have an initial speed faster than the speed of sound, meaning they are supersonic and thus can travel a substantial distance and even hit a target before a nearby observer hears the "bang" of the shot. Bullet speed through air depends on a number of factors such as barometric pressure, humidity, air temperature, and wind speed.
The history of bullets far predates the history of firearms. Originally, bullets were made out of stone or purpose-made clay balls used as sling ammunition, as weapons and for hunting. Eventually as firearms were developed, these same items were placed in front of a propellant charge of gunpowder at the end of a closed tube. As firearms became more technologically advanced, from 1500 to 1800, bullets changed very little. They remained simple round (spherical) lead balls, called rounds, differing only in their diameter.

The development of the hand culverin and matchlock arquebus brought about the use of cast lead balls as projectiles. "Bullet" is derived from the French word boulette which roughly means little ball. The original musket bullet was a spherical lead ball smaller than the bore, wrapped in a loosely fitted paper patch which served to hold the bullet in the barrel firmly upon the powder. (Bullets that were not firmly upon the powder upon firing risked causing the barrel to explode, with the condition known as a short start.) The loading of muskets was, therefore, easy with the old smooth-bore Brown Bess and similar military muskets. The original muzzle-loading rifle, on the other hand, with a more closely fitting ball to take the rifling grooves, was more difficult to load, particularly when the bore of the barrel was fouled from previous firings. For this reason, early rifles were not generally used for military purposes.
The first half of the nineteenth century saw a distinct change in the shape and function of the bullet. In 1826, Delvigne, a French infantry officer, invented a breech with abrupt shoulders on which a spherical bullet was rammed down until it caught the rifling grooves. Delvigne's method, however, deformed the bullet and was inaccurate. Square bullets, invented by James Puckle and Kyle Tunis, were briefly used in one version of the Puckle gun. The use of these was soon discontinued due to irregular and unpredictable flight patterns.
The next important change in the history of the rifle bullet occurred in 1882, when Major Eduard Rubin, director of the Swiss Army Laboratory at Thun, invented the copper-jacketed bullet — an elongated bullet with a lead core in a copper jacket. It was also small bore (7.5mm and 8mm) and it is the precursor of the 8mm "Lebel bullet" which was adopted for the smokeless powder ammunition of the Mle 1886 Lebel rifle.

The surface of lead bullets fired at high velocity may melt due to hot gases behind and friction with the bore. Because copper has a higher melting point, and greater specific heat capacity and hardness, copper-jacketed bullets allow greater muzzle velocities. European advances in aerodynamics led to the pointed spitzer bullet. By the beginning of the twentieth century, most world armies had begun to transition to spitzer bullets. These bullets flew for greater distances more accurately and carried more energy with them. Spitzer bullets combined with machine guns greatly increased the lethality of the battlefield.

The latest advancement in bullet shape was the boat tail, a streamlined base for spitzer bullets. The vacuum created as air moving at high speed passes over the end of a bullet slows the projectile. The streamlined boat tail design reduces this form drag by allowing the air to flow along the surface of the tapering end. The resulting aerodynamic advantage is currently seen as the optimum shape for rifle technology. The first combination spitzer and boat-tail bullet, named Balle "D" from its inventor (a lieutenant-colonel Desaleux), was introduced as standard military ammunition in 1901, for the French Lebel Model 1886 rifle.

A ballistic tip bullet is a hollow-point rifle bullet that has a plastic tip on the end of the bullet itself. This improves external ballistics by streamlining the bullet, allowing it to cut through the air more easily, and improves terminal ballistics by allowing the bullet to act as a JHP on impact. As a side effect, it also feeds better in weapons that have trouble feeding rounds that are not FMJ rounds.
 Design

Bullet designs have to solve two primary problems. In the barrel, they must first form a seal with the gun's bore. If a strong seal is not achieved, gas from the propellant charge leaks past the bullet, thus reducing efficiency and possibly accuracy. The bullet must also engage the rifling without damaging or excessively fouling the gun's bore, and without distorting the bullet, which will also reduce accuracy. Bullets must have a surface which will form this seal without causing excessive friction. These interactions between bullet and bore are termed internal ballistics. Bullets must be produced to a high standard, as surface imperfections can affect firing accuracy.

The physics affecting the bullet once it leaves the barrel is termed external ballistics. The primary factors affecting the aerodynamics of a bullet in flight are the bullet's shape and the rotation imparted by the rifling of the gun barrel. Rotational forces stabilize the bullet gyroscopically as well as aerodynamically. Any asymmetry in the bullet is largely canceled as it spins. However, a spin rate greater than the optimum value adds more trouble than good, by magnifying the smaller asymmetries or sometimes resulting in the bullet exploding midway in flight. With smooth-bore firearms, a spherical shape was optimum because no matter how it was oriented, it presented a uniform front. These unstable bullets tumbled erratically and provided only moderate accuracy; however, the aerodynamic shape changed little for centuries. Generally, bullet shapes are a compromise between aerodynamics, interior ballistic necessities, and terminal ballistics requirements. Another method of stabilization is for the center of mass of the bullet to be as far forward as is practical, which is how the Minié ball and the shuttlecock are designed. This allows the bullet to fly front-forward by means of aerodynamics.

See the articles on terminal ballistics and/or stopping power for an overview of how bullet design affects what happens when a bullet impacts with an object. The outcome of the impact is determined by the composition and density of the target material, the angle of incidence, and the velocity and physical characteristics of the bullet itself. Bullets are generally designed to penetrate, deform, and/or break apart. For a given material and bullet, the strike velocity is the primary factor determining which outcome is achieved.

Bullet shapes are many and varied, and an array of them can be found in any reloading manual that sells bullet moulds. Mould manufacturers such as RCBS,  Paul Jones Moulds, and David Mos offer many different calibers and designs. With a mould, bullets can be made at home for reloading one's own ammunition, where local laws allow. Hand-casting, however, is only time- and cost-effective for solid lead bullets. Cast and jacketed bullets are also commercially available from numerous manufacturers for hand loading and are much more convenient than casting bullets from bulk lead.
Treaties and prohibitions
Poisonous bullets were a subject to an international agreement as early as the Strasbourg Agreement (1675).

The St. Petersburg Declaration of 1868 prohibited the use of explosive projectiles weighing less than 400 grams.

The Hague Convention prohibits certain kinds of ammunition for use by uniformed military personnel against the uniformed military personnel of opposing forces. These include projectiles which explode within an individual, poisoned and expanding bullets. Protocol III of the 1983 Convention on Certain Conventional Weapons, an annexe to the Geneva Conventions, prohibits the use of incendiary ammunitions against civilians.

Nothing in these treaties prohibits tracers or the use of prohibited bullets on military equipment. These treaties apply even to .22 LR bullets used in pistols, rifles and machine guns. Hence, the High Standard HDM pistol, a .22 LR suppressed pistol, had special bullets developed for it during World War II that were full metal jacketed, in place of the soft-point and hollow-point bullets that are otherwise ubiquitous for .22 LR rounds.

Some jurisdictions acting on environmental concerns have banned hunting with lead bullets and shotgun pellets.  This creates issues for shooters because stainless steel pellets are considered to behave sub-optimally in flight compared to lead. The element bismuth is a safe alternative whose density is closer to lead than steel, and ammunition made from it is becoming ever more widely available. In December 2014, a federal appeals court denied a lawsuit by environmental groups that the EPA must use the Toxic Substances Control Act to regulate lead in shells and cartridges. The groups sought to regulate "spent lead", yet EPA could not regulate spent lead without also regulating cartridges and shells, per the court
